Sensor Technology Tasks

Arduino 4 Task (MIDI and Basic Audio)

Task 4 Name: Auduino Set: w2i Due: Monday 19th December 2016 Weighting: assessable/recommended (10%) Courses: stech
Prev Task: Connecting the Arduino, MaxMSP and SuperCollider Next Task: Servos
Task Summary All stech tasks

MIDI via Arduino

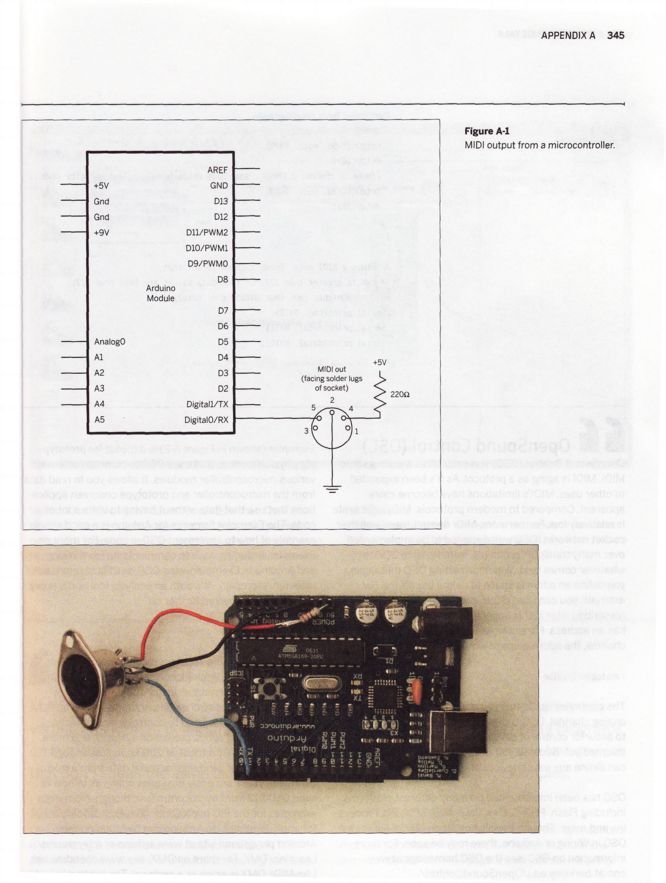

Physical Set-up. Note the 220 ohm resistor: it is very important a 220 ohm resistor is used, any other value will not work.

/*
MIDI
Language: Wiring/Arduino

Plays MIDI notes from 30 to 90 (F#-0 to F#-5)

*/

char note = 0;    // The MIDI note to be played

void setup()  {
    // Set MIDI baud rate
    Serial.begin(31250);
}

void loop()  {
  // play notes from  30 to 90 (F#-0 to F#-5):
  for (note = 0; note < 127; note ++)  {
    // Note on channel 1 (0x90), some note value (note), middle velocity (0x45):
    noteOn(0x90, note, 0X70);
    delay(10);
    // Note on channel 1 (0x90), some note value (note), silent velocity (0x00):
    noteOn(0x90, note, 0x00);
    delay(100);
  }
}

// Plays a MIDI note.  Doesn't check to see that
// cmd is greater than 127, or that data values are less than 127:

void noteOn(char cmd, char data1, char data2)  {
  Serial.print(cmd, BYTE);
  Serial.print(data1, BYTE);
  Serial.print(data2, BYTE);
}

Another example

/*
MIDI2
Language: Wiring/Arduino

Plays MIDI notes from 30 to 90 (F#-0 to F#-5)

*/

char note = 0;    // The MIDI note to be played
char rnote = 0;  // Random Note

void setup()  {
    // Set MIDI baud rate
    Serial.begin(31250);
}

void loop()  {
  randomSeed(analogRead(0));
  // play notes from  30 to 90 (F#-0 to F#-5):
  for (note = 0; note < 127; note ++)  {
    // Note on channel 1 (0x90), some note value (note), middle velocity (0x45):
    noteOn(0x90, note, 0X70);
    delay(200);
    // Note on channel 1 (0x90), some note value (note), silent velocity (0x00):
    noteOn(0x90, note, 0x00);
    delay(10);
    //
    // Now the random number!
    // return a random number from 50 - 300
    // randNumber = random(50,300);
    rnote = random(0,127);
    noteOn(0x90, rnote, 0X70);
    delay(100);
    noteOn(0x90, rnote, 0X00);
    delay(10);
  }
}

// Plays a MIDI note.  Doesn't check to see that
// cmd is greater than 127, or that data values are less than 127:

void noteOn(char cmd, char data1, char data2)  {
  Serial.print(cmd, BYTE);
  Serial.print(data1, BYTE);
  Serial.print(data2, BYTE);
}

Basic Audio Using a Piezo Disc

Have a look here.


Just in case, here's the latest version of the Arduino to Max Patch

To cover:

This is just a way of communicating via MIDI with another device, through the Arduino...
That
and the other.

This also has ramifications concerning:

Life, the universe and anything...




to top of page The Task

  • Develop a simple routine using MIDI. You'll need to find a simple MIDI synth for this task. Ebay is sometimes quite useful.

  • Implement it, demonstrate it, photograph it, video it...

Finally

  • Zip or Stuff your patches, demos, etc. into one file called your_student_number_"MIDI" (e.g. 0504335_MIDI.zip or 0504335_MIDI.sit), include a readme with your name and student number and, if necessary, how to use or just open the patch, and submit the whole thing here.
